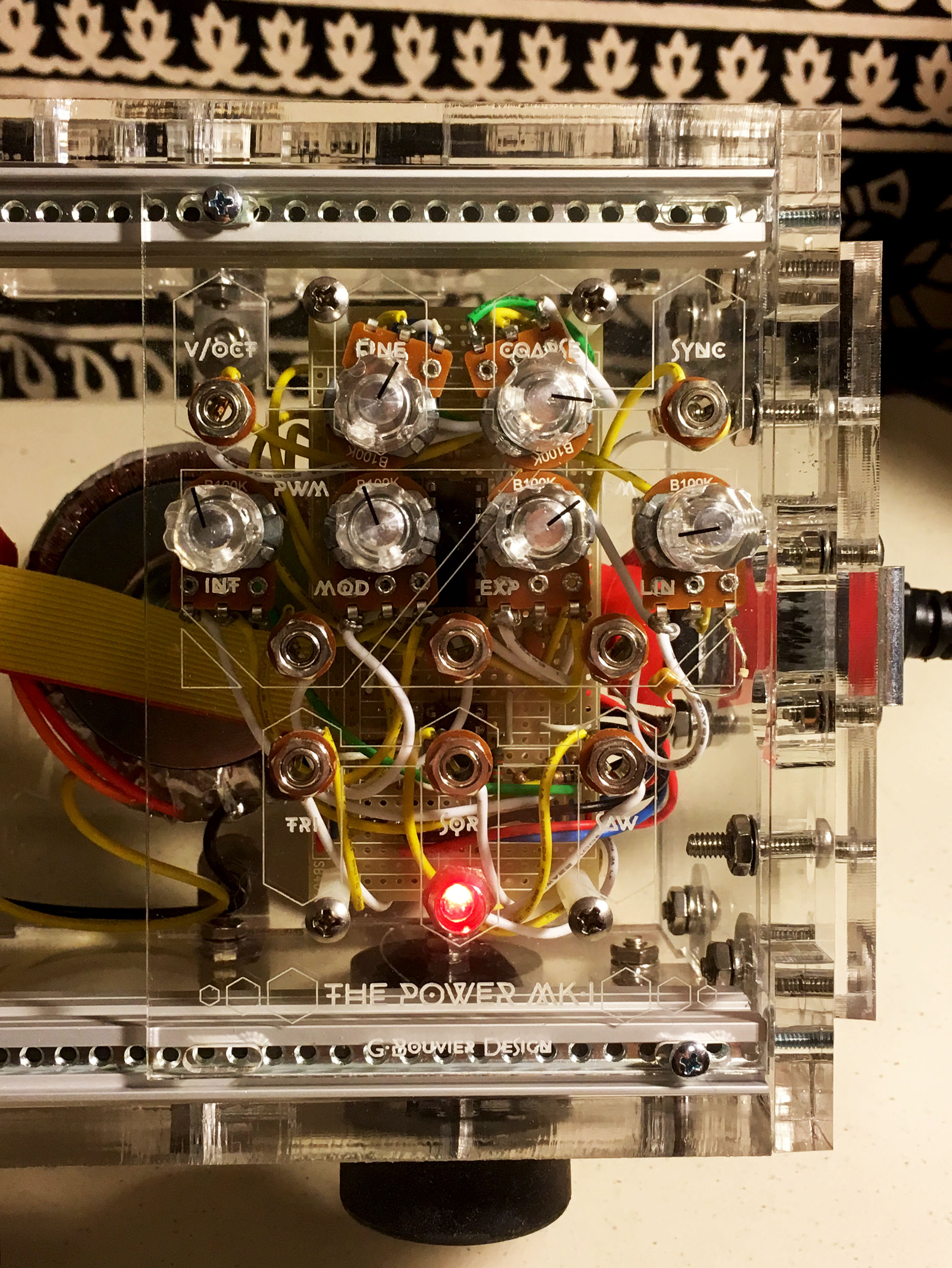

The Power VCO


A subtractive workhorse

The Power is a versatile voltage controlled oscillator based around the freshly minted CEM3340 reissue VCO integrated circuit. Featuring extremely stable pitch tracking and a wide frequency range across 8 octave, The Power can carry the brunt of signal generation in your case. Also featured in The Power’s design is hard sync, pulse width modulation, linear and exponential frequency modulation input with individual attenuation, and outputs for a triangle, pulse, and sawtooth wave.

Features and Specifications:

  • 1Volt/octave input, 3U eurorack compatible
  • 100% analog circuitry
  • Coarse, fine tuning control
  • Exponential, linear modulation CV inputs with attenuators
  • Pulse width modulation CV input with attenuator
  • Hard sync input
  • Triangle, sawtooth, square wave outputs
  • Frequency range: 10Hz - 20kHz+
  • Output Voltage: 8-10Vpp
  • Front panel: 3mm thick, laser cut clear acrylic
  • Width:
  • Module depth:
  • Power: +/- 12 Volts DC at 40-60 mA (shrouded 16 pin header)

Sound samples coming soon!
