Strips VCA

strips vca

A lot of VCAs...

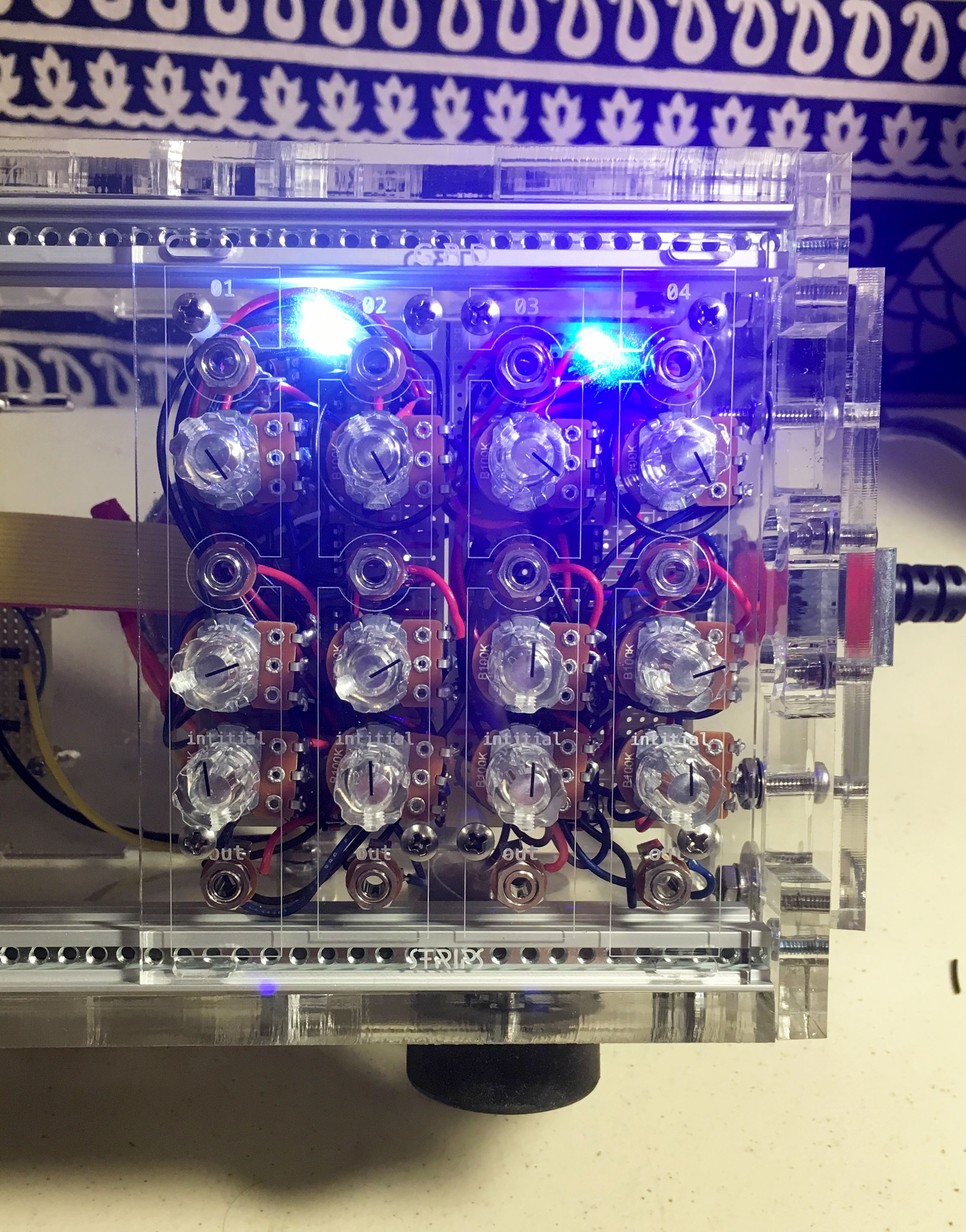

Strips is 4 linear voltage controlled amplifiers rolled into one package. This module features individual signal inputs, outputs, and control inputs for each of the 4 VCAs, with normalized inputs for signal and control inputs for VCAs 1 to 2, and 3 to 4 (2 and 3 are not normalized). This module is designed to be used with the Okeanos to allow for analog granular techniques and quadraphonic audio. .

Features and Specifications:

  • 3U eurorack compatible
  • 100% analog circuitry
  • 4 control sections for 4 VCAs
  • Linear control input response
  • Normalized signal and control inputs for 1-2, 3-4
  • Individual outputs for each VCA
  • Frequency range: 10Hz - 20kHz+
  • Front panel: 3mm thick, laser cut clear acrylic
  • Width:
  • Module depth:
  • Power: +/- 12 Volts DC at 40-60 mA (shrouded 16 pin header)

Sound samples coming soon!
