Arcogon AD/AR

arcogon

Exponential motion in a manageable package..

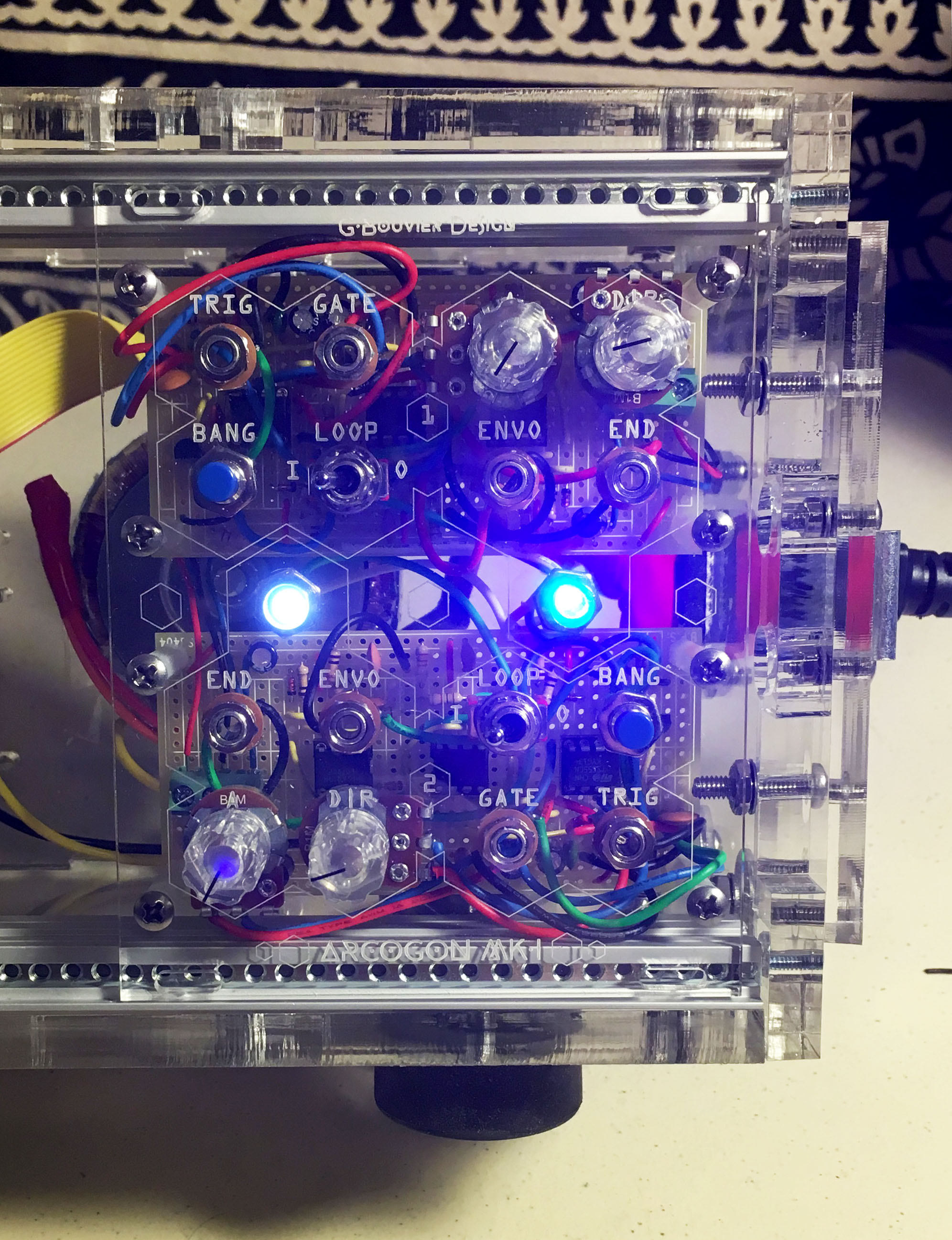

The Arcogon is a duel attack-decay, attack-release envelope generator with looping functionality, trigger and gate inputs, end sequence trigger output, and manual initiation button. Generating exponential curves ranging from 10 milliseconds to over 5 seconds for both attack and decay/release phases, the Arcogon is is useful for any situation that calls for envelop generation.

Features and Specifications:

  • Individual trigger and gate inputs
  • 100% analog circuitry
  • Attack and decey/release phase control
  • Exponential envelope output
  • Looping switch for LFO
  • Envelope end trigger output
  • Timeing range: 10 ms. to 5+ seconds per stage
  • Output Voltage: 4-5 volts
  • Front panel: 3mm thick, laser cut clear acrylic
  • Width:
  • Module depth:
  • Power: +/- 12 Volts DC at 40-60 mA (shrouded 16 pin header)

Sound samples coming soon!
